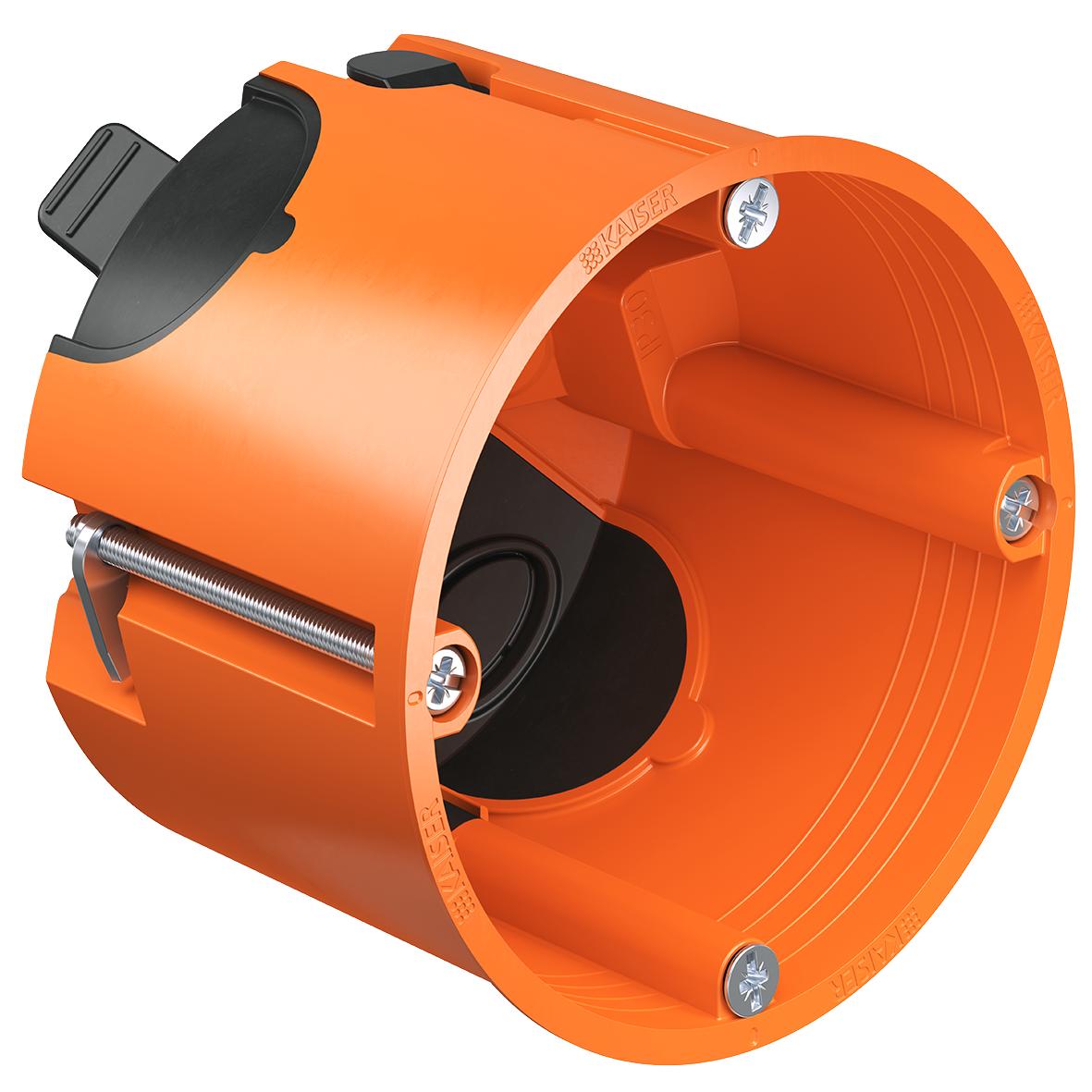

O-range ECON® 64 one-gang junction box

O-range ECON® 64 one-gang junction box

  • 9264-22
  • 4013456548299
  • Air-tight design with sealing membranes
  • fully-insulated air-tight through-wiring for combinations using support connectors
  • tool-free cable or conduit entries
  • integrated strain relief of NYM cables, self-locking of conduits
  • Art. No. 9264-22 replaces Art. No. 9264-21, Art. No. 9264-78 replaces Art. No. 9264-77
For panel thickness
7 – 40 mm
Depth
62 mm
Cut hole Ø
68 mm
Device screws
2
Tube entries up to M25
2
Cable entries 5 x 2.5 mm² or 7 x 1.5 mm²
1
Cable entries 3 x 2.5 mm² or 5 x 1.5 mm²
3
Cable entries 3 x 1.5 mm²
3
Support connectors for each package
7
Air-tight
Packaging inner/dispatch
25/250
Price/100 ST
212.00€
Price group
110
