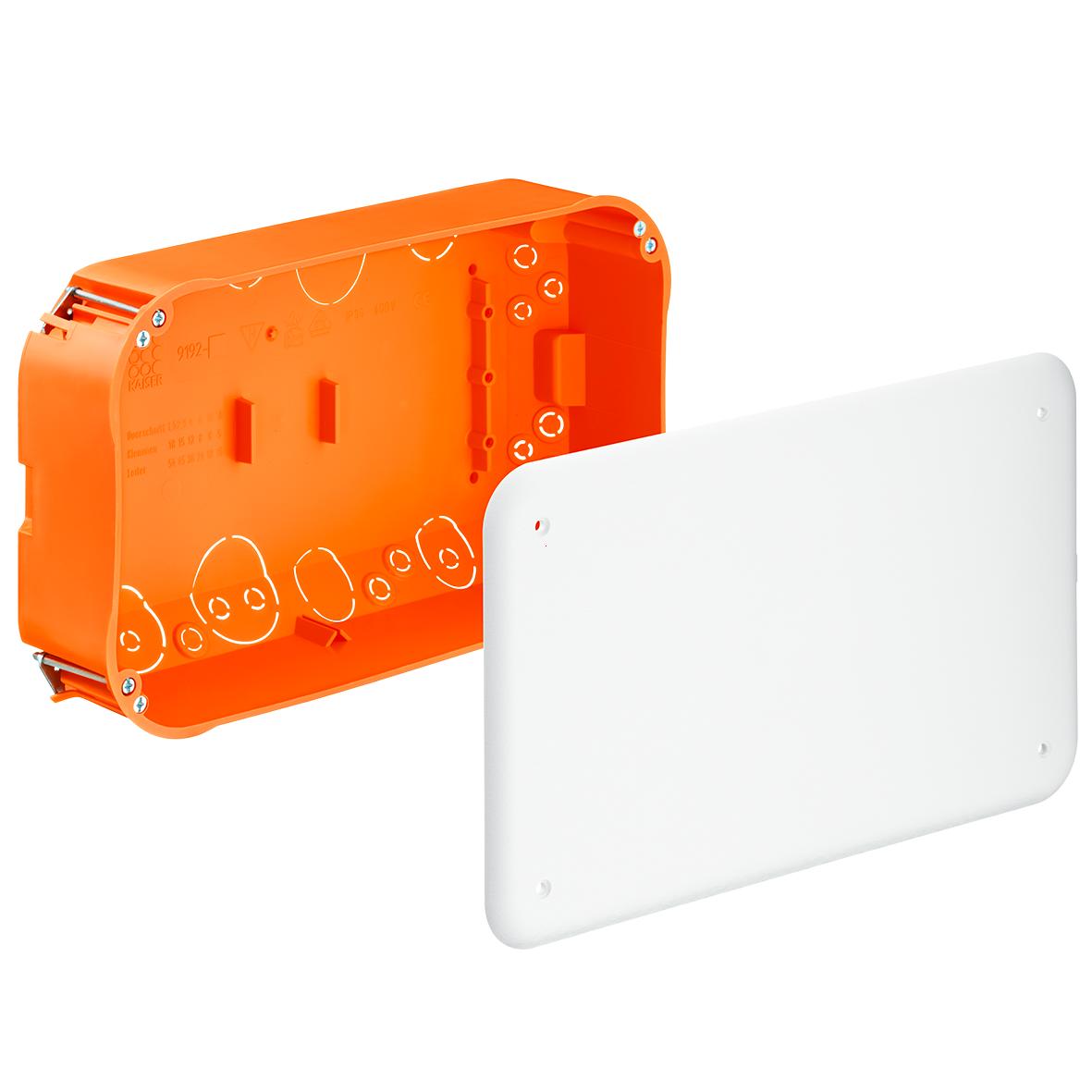

- Order number: 9192-91
- EAN: 4013456230002
- for installation: DIN terminal strips, TS 35 standard rails for terminal strips, etc., terminal blocks up to 16 mm²
- with drilling template (supplied)
- including cover
Length
238 mm
Width
140 mm
Depth
72 mm
Cut hole Ø
4 x 68 mm
For terminals up to
16 mm2
Break-out openings Ø 20 mm
8
Break-out openings Ø 25 mm
2
Break-out openings Ø 32 mm
2
Cable entries for NYM and low-voltage cabling
Maximum of 3 electrical circuits with separator walls
Dispatch
10
Price/100 ST
4,920.00€
Price group
120
