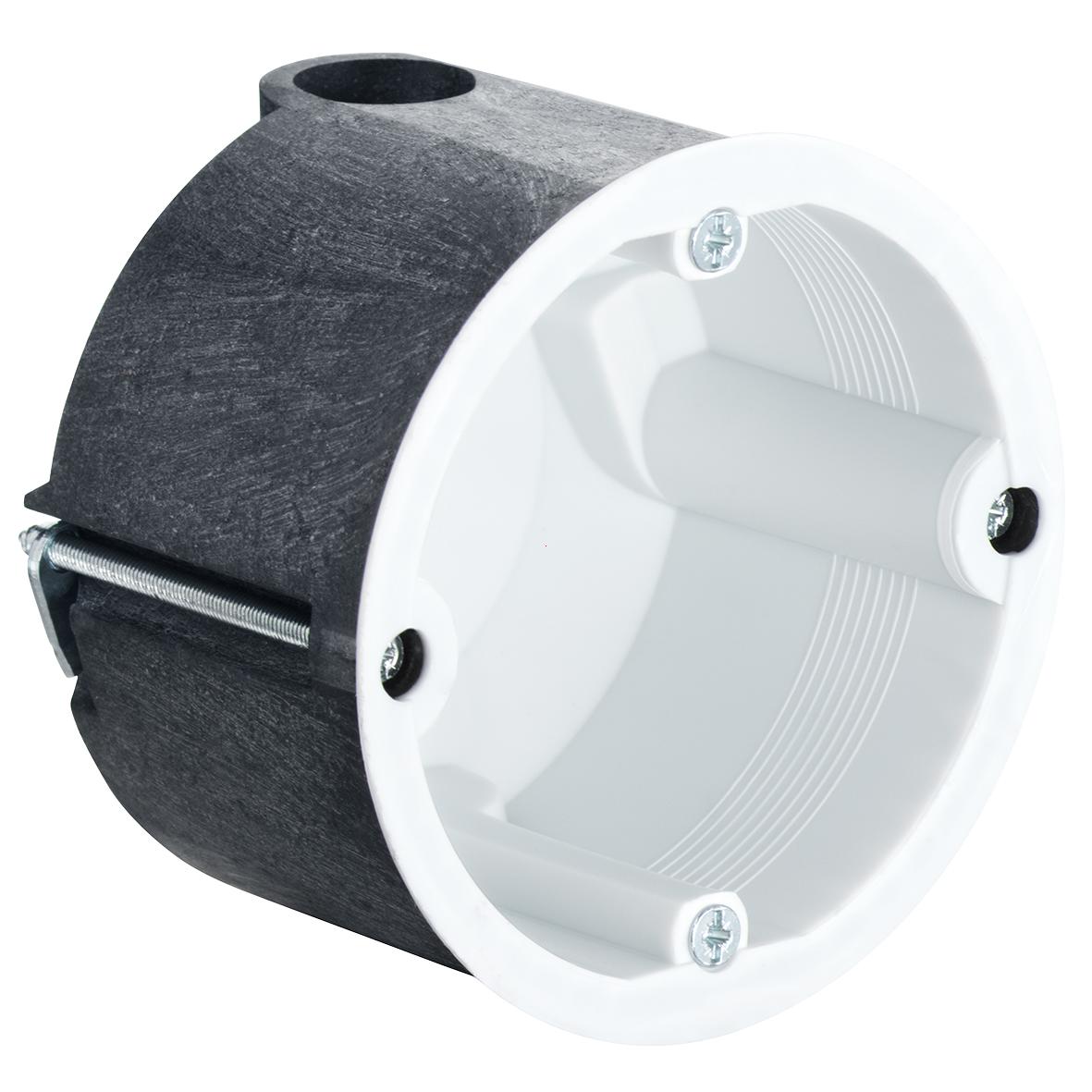

Fire protection cavity wall box

Fire protection cavity wall box

  • 9464-01
  • 4013456531666
  • for fire-protection walls EI30 – EI20
  • also for installation shafts/installation channels I30 – I90
Depth
54,5 mm
Cut hole Ø
74 mm
For panel thickness
7 – 40 mm
Combination distance through single separation of the pre-embossed edge
71 mm
Cable entries of up to Ø 11.5 mm
4
alternatively cable entry for three-phase alternating current of up to 5 x 2.5 mm possible
Support connectors for each package
5
DIBt approval
Z-19.21-2321
Halogen-free
for sound insulation walls up to
77 dB
Packaging inner/dispatch
10/100
Price/1 ST
13.90€
Price group
190
