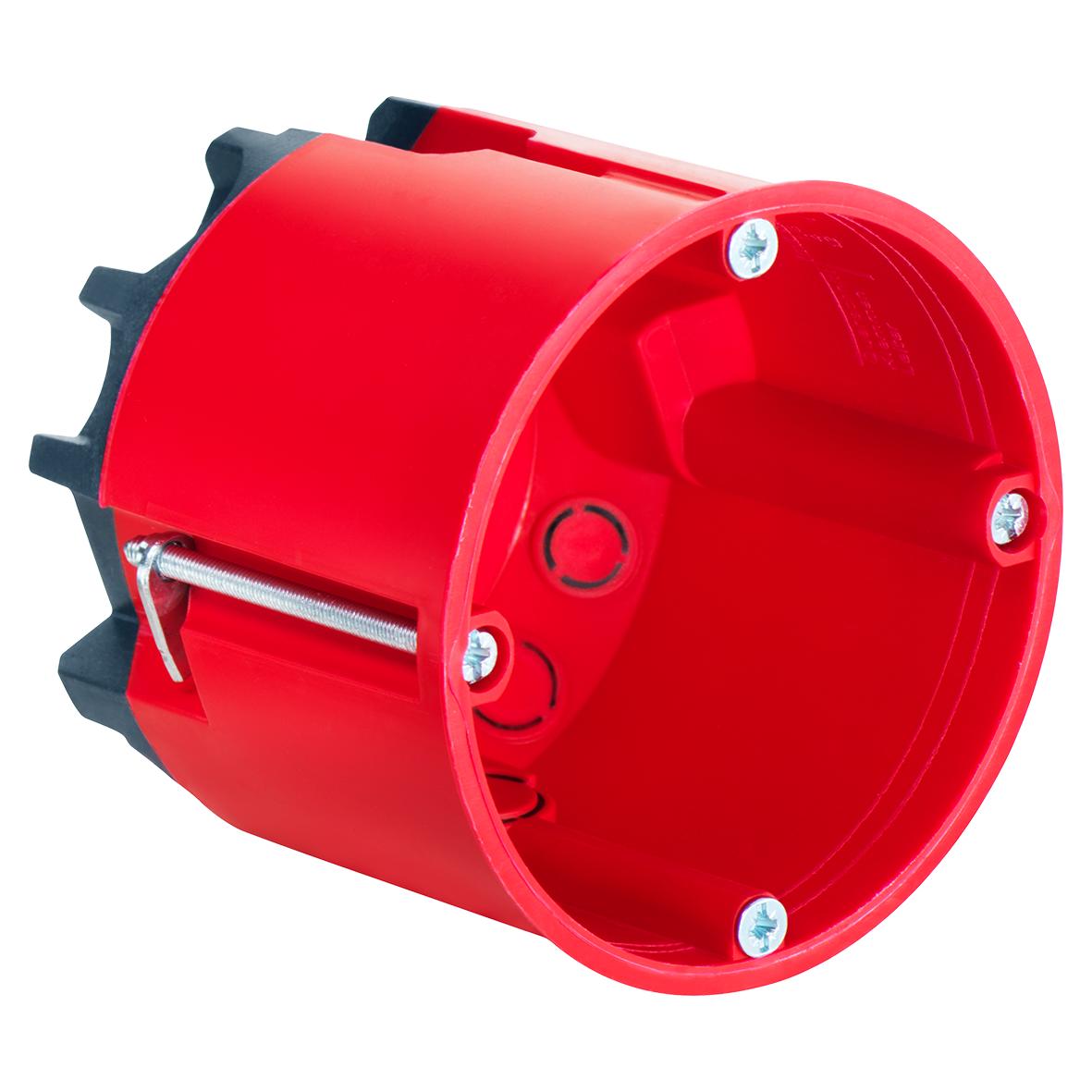

Fire-protection box cavity wall

Fire-protection box cavity wall

  • 9464-02
  • 4013456546219
  • for EI 30 – EI 90 fire-protection walls
  • also for directly opposing installation
  • minimum wall thickness 125 mm
  • combinable with each other and with the one-gang box
Depth
62 mm
Cut hole Ø
68 mm
For panel thicknesses up to
40 mm
Cable entries of up to Ø 11.5 mm
6
Support connectors for each package
5
DIBt approval
Z-19.21-2321
Halogen-free
for sound insulation walls up to
69 dB
Packaging inner/dispatch
10/100
Price/1 ST
11.90€
Price group
190
