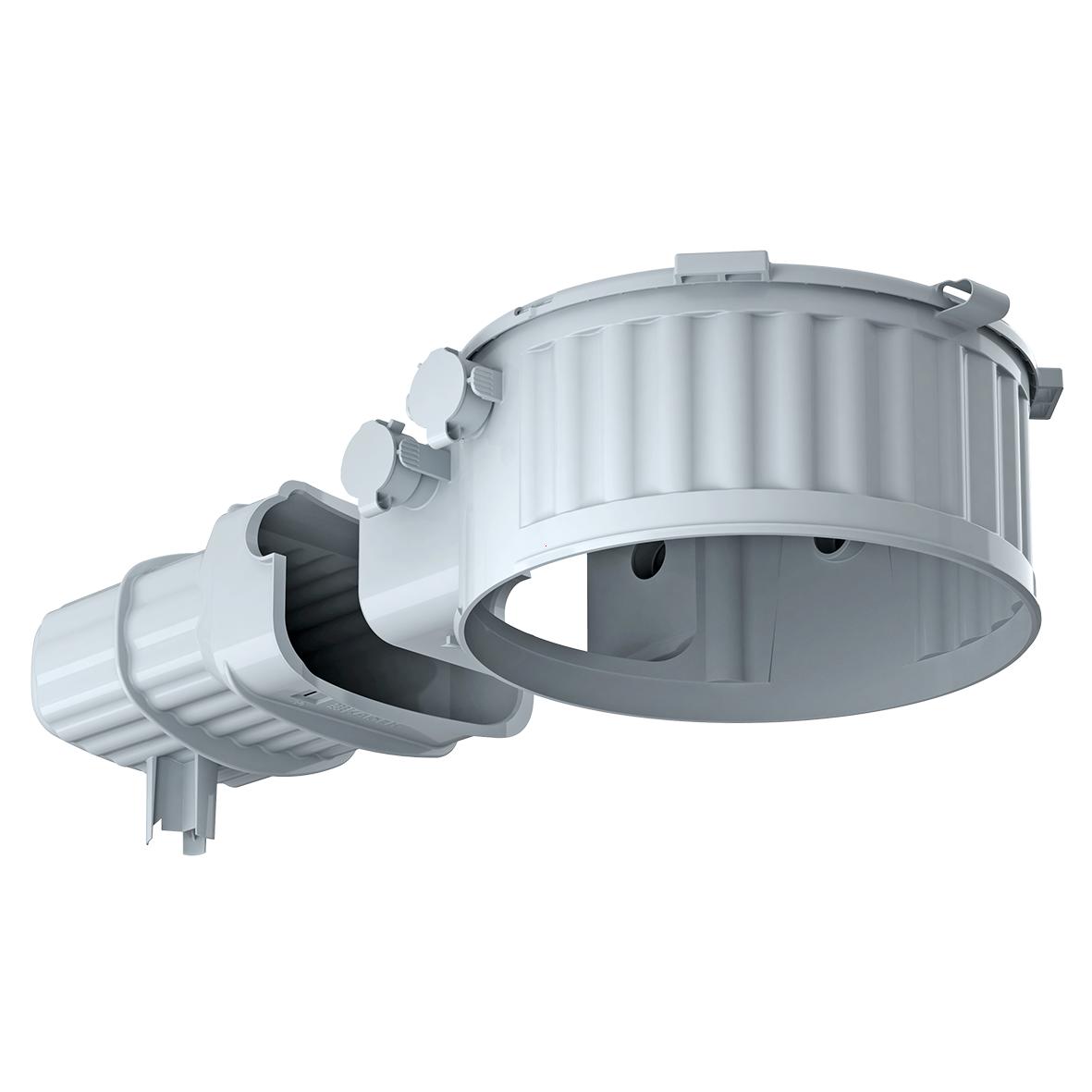

Concrete installation housing HaloX® (on-site mixed concrete)

Concrete installation housing HaloX® (on-site mixed concrete)

  • 1282-30
  • 4013456547018
  • Toolless combination entry for M20/M25 conduits
  • Conduit entry limit to prevent the need for inside shortening of the conduit
  • No reinforcement cuts in tunnel section area
System
HaloX® 180
Ceiling exit (CE) Ø
0-180 mm
Max. installation depth luminaire / loudspeaker
110 mm
LED wattage max.
35 Watt
Lamp wattage max.
75 Watt
Housing diameter Ø
210 mm
Depth incl. front part
120 mm
Tunnel length
190 mm
Tunnel width
140 mm
Tunnel height
85 mm
Combination entry for M20/M25 conduits
4
Dispatch
10
Price/100 ST
3,020.00€
Price group
150
